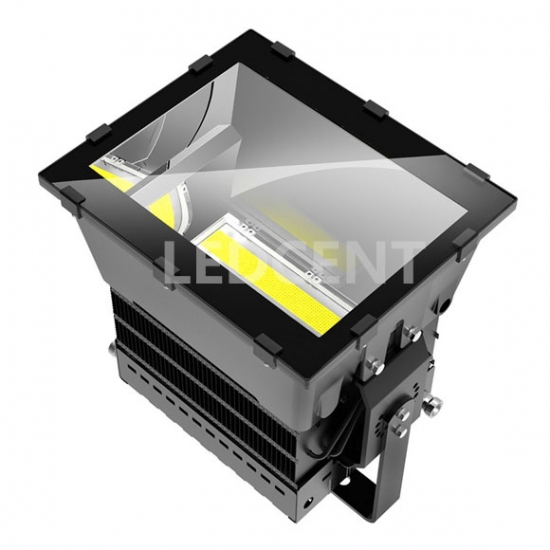

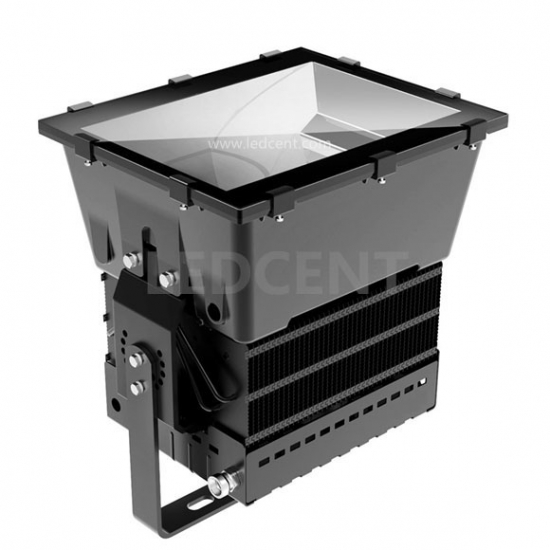

LED Sports Lighting

  • Item NO.:

    LC-QC001-1000
  • Input voltage :

    AC85~265V
  • Power :

    1000W
  • Luminous flux :

    90000lm
  • LED light source :

    CREE
  • Driver :

    Philips/MOSO/Meanwell
  • PF :

    0.97
  • CRI :

    75
  • Luminous efficiency :

    92%
  • Color temperature :

    2700-6000k
  • Working temperature :

    -30-55℃
  • IP rating :

    IP65
  • Warranty :

    5 years
  • Order(MOQ):

    1
  • Product Origin:

    CHINA
  • Shipping Port:

    Zhongshan
  • Lead Time:

    1-30Day

High Power LED Sports Lighting for Arena lighting-LEDcent

The Featuers for LED sports lighting

1. Wide range of power selection: 200-1000W

2. Wide beam angle selection: 10*90/50*90 degree available.
3. Anti-glare design, better idea for badminton court lighting.

4. Cooling fin design combine with cooper tube, phrase change for better heat dissipation, to extend LED chip lifespan.

5. Meanwell HLG or MOSO driver, with more stable and reliable performance.

6. Applicable to soccer field, stadium, gymnasium, golf course, wharf, airport, high pole lighting, construction area and other places.

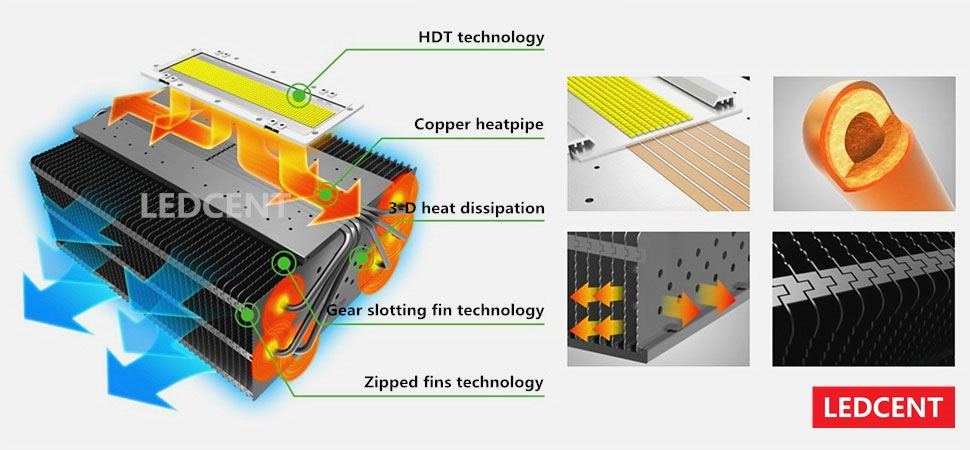

Efficient heat pipe thermal technology, filling the cooling medium, the heat of LED chip can be generated by the rapid heat conduction to the cooling fins;

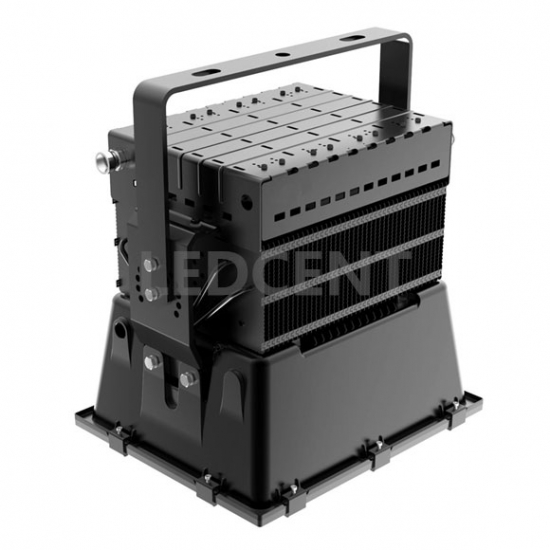

Ultra-thin cooling fin design, a significant increase in heat surface area, enhance thermal performance;


Professional Stadium lighting with light design, the most effective light output to the lighting area;
Lamps with a directional reflector to ensure the effectiveness of light sources to avoid light waste;


High-quality LED stadium lights dedicated driver power, five years warranty;
No flicker, will not affect the camera shooting, live television;

LED足球场照明灯

Transparent mask with high strength tempered glass, thickness 4mm;

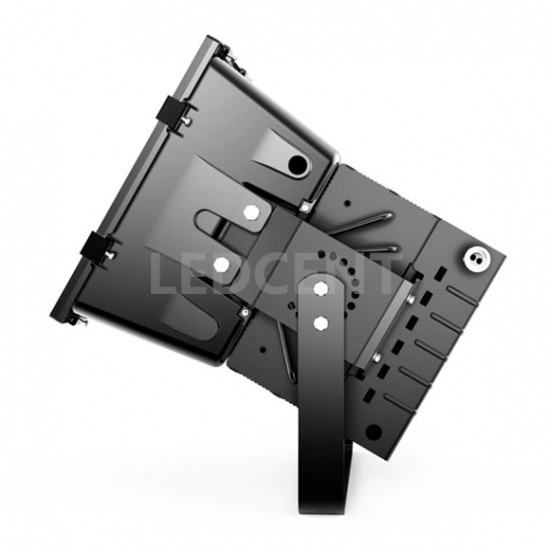

Bracket with shock-proof screw design, to ensure that the environment will not shake the screws loose;

Protection class IP65;


Surface treatment using electrophoresis process, with superior anti-acid-base anti-corrosion ability;

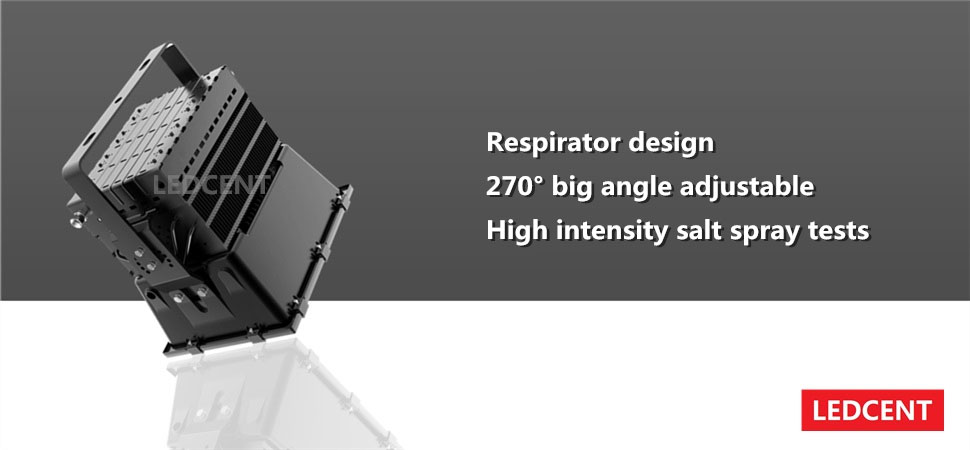

LED stadium lights can be achieved 270 degree big angle adjustable ;
Respirator design, balance the internal and external pressure difference lamp, effectively prevent the lamps in the process of running the internal condensation of mist;


Using the United States CREE XT-E series LED chip;

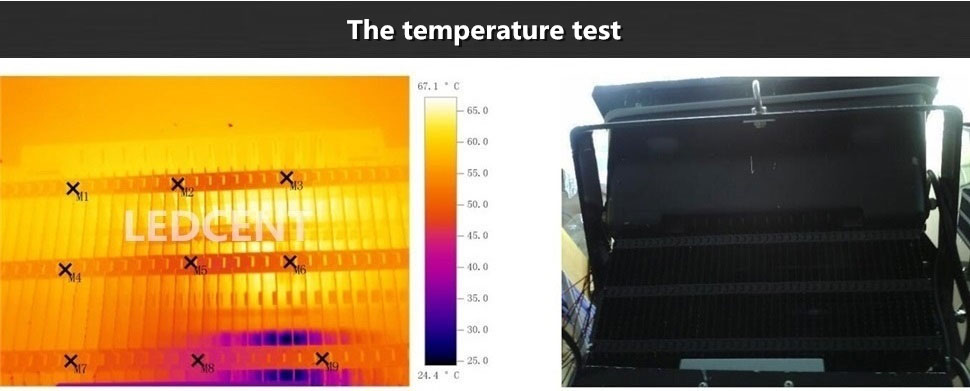

Test object            Temperature  ℃     Radiation rate       Reflected temperature  ℃
Test point M1 57.3 0.94 30.0
Test point M2
51.1 0.94
30.0
Test point M3
53.1 0.94
30.0
Test point M4
54.1 0.94
30.0
Test point M5
48.2 0.94
30.0
Test point M6
50.5              0.94
30.0
Test point M7
51.5 0.94
30.0
Test point M8
44.6 0.94
30.0
Test point M9
49.6 0.94
30.0


LED球场照明



Technical specification


  Model No.

 LC-QC01 series

  Power

 200-1000W

 Total Luminare Flux

 >100lm/w

 Color Temperature

 2700-6000K

 Color Rending Index

 75

 Input Voltage

 AC 85~265V 50/60HZ

 Lightening Protector

 10KV

 Power Factor

 0.98

 THD

 <15%

 Water proof rating

 IP65

 Ambient temperature

 -30~55℃

 Humidity

 10~90%
