Item NO.:
LC-L004-50Input voltage :
AC 85~265VPower :
50WLuminous flux :
14400~19200lmLED light source :
Philips/OSRAMDriver :
LEDCENTPF :
0.9CRI :
75Luminous efficiency :
110-130lm/wColor temperature :
2700-6500KWorking temperature :
-40-55℃IP rating :
IP65Warranty :
5 yearsOrder(MOQ):
1Payment:
TT, L/C, PaypalProduct Origin:
ChinaColor:
BlackShipping Port:
Zhongshan / Shenzhen/ GuangzhouLead Time:
1-30 days
Using OSRAM, Philips, Cree high-brightness LED chip, lighting efficiency more than 110lm / w;
Using Meanwell / Inventronics / MoSo and other high-quality driver, this series LED street lamp five-year quality warranty;
Can support Ziggbe remote control system;
Can support power carrier remote control system;
Can support 0-10V dimmable;

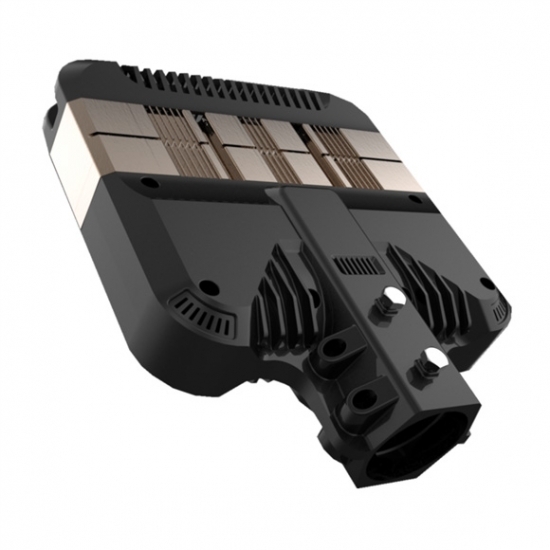

50W LED street lights with high-quality aluminum alloy pull extrusion type, excellent heat dissipation;
Surface using anodizing process, distinguished rose gold color;
All fasteners are made of 304 stainless steel;
Ingress Protection rating : IP65;
Anti-collision level IK10

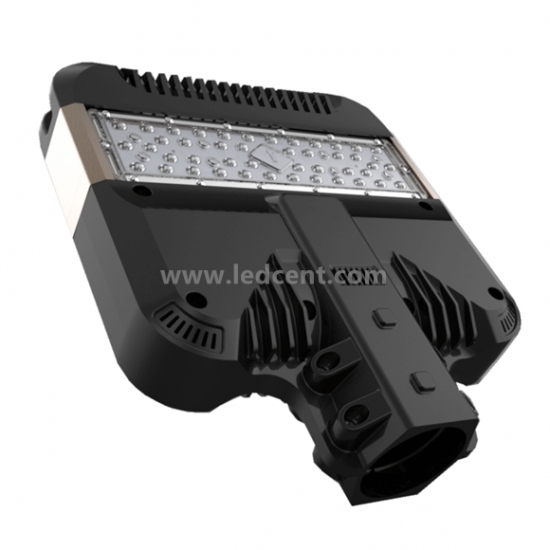

High light transmission LED street lamp lens, lighting transmittance more than 90%;
LED lens with anti-aging, anti-yellowing, anti-brittle characteristics;
Using Philips
or Osram 3030 LED chips, each module 65pcs chipsf, SMT
technology, whole light efficiency reached 105 ~ 110lm / w;
Use CREE XTE 3535 chips, each module 28pcs LED chip, the whole light efficiency of 110 ~ 115lm / w;
High thermal conductivity aluminum plate, thermal conductivity greater than 3.0;
Using the United States Dow Corning thermal grease, thermal conductivity strong;
Using Meanwell, Inventronics and other high-end power supply, 5-year quality warranty;
Power factor greater than 0.97;
LED street lamp power conversion rate greater than 90%;
Compatible with remote intelligent control system, through the phone, PAD, computer remote control of LED street lights;
50W
OSRAM LED street lights support Promise dimming, timing dimming, switches,
fault alarm, status query, scene lighting, remote meter reading, data
monitoring and other functions;
Support microwave radar sensor system, to achieve daylight automatically turn off the lights, lights working when people coming and lights turn off after people go away.
Technical Parameters
Model
LC-L003-50
Power
50W
Luminous Flux
5500lm
Color Temperature
2700-6000K
Color Rendering Index
75
Input voltage
AC 85 ~ 265V
Lightning Protection Level
10KV
Power Factor
0.98
Total Harmonic Distortion
<15%
Protection Class
IP65
Applicable Temperature
-40 ~ 55 ℃
Applicable Humidity
10 to 90%
